Complex precision parts often require several machining operations within a limited work area. Manufacturers need equipment that can maintain tight tolerances while handling turning, drilling, threading, milling, and other features efficiently.
An 8-axis configuration gives a swiss type CNC lathe more machining flexibility than a basic turning center. Multiple controlled movements allow different tools to work on the component in coordinated sequences, reducing unnecessary repositioning and helping manufacturers produce intricate parts with greater consistency.
What Makes 8-Axis Machining Different?
An 8-axis machine provides multiple axes of movement that support different cutting operations. Instead of relying on a single tool for most machining tasks, the machine can coordinate several tools according to the part program.
This configuration proves useful for components that contain numerous features across different surfaces. It allows manufacturers to plan a more efficient machining sequence around the geometry of the finished part.
The exact capabilities depend on the machine design, spindle arrangement, tooling system, and control configuration.
Guide Bushing Supports Small Precision Parts
Swiss-type machining uses a guide bushing to support the workpiece close to the cutting area. This support helps reduce deflection during machining.
The arrangement becomes especially valuable when producing long, slender, or small-diameter components. Stable workpiece support helps maintain dimensional accuracy during demanding cutting operations.
A well-supported workpiece also allows manufacturers to use appropriate cutting conditions without excessive vibration.
Multiple Operations In One Setup
Complex components often require several machining processes. An 8-axis Swiss configuration can combine many of these operations within one production cycle.
Typical processes may include:
- External turning
- Facing
- Drilling
- Boring
- Threading
- Grooving
- Milling
- Parting
Combining operations reduces the need to move the component between separate machines. This saves handling time and helps preserve the relationship between different features.

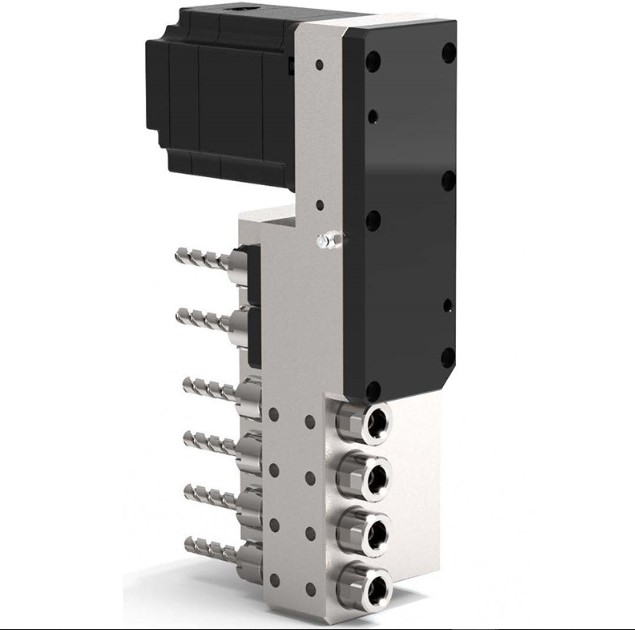

Live Tooling Handles Milled Features
Live tooling allows rotating cutters to perform machining operations while the workpiece remains under CNC control.
This capability helps create cross holes, slots, flats, keyways, and other non-turning features. The machine can coordinate tool movement with the workpiece to produce these details accurately.
For complex parts, live tooling reduces the need for separate milling operations and helps streamline the production process.
Main And Sub-Spindle Coordination
An 8-axis Swiss machine may use main and sub-spindle capabilities to support machining from different sides of a component.
The main spindle handles primary machining, while the sub-spindle can take over the workpiece for additional operations. This arrangement helps manufacturers access features that would otherwise require another setup.
Reducing manual repositioning also helps improve consistency between front-side and rear-side features.
Better Control Of Complex Geometries
Complex precision parts often contain multiple diameters, grooves, angled features, holes, and threads. Producing these features accurately requires careful coordination between tool movement and spindle rotation.
An 8-axis control configuration provides more opportunities to distribute machining operations efficiently. The programmer can determine which tools should work at specific stages of the cycle.
This flexibility proves especially useful when a component requires several operations within a compact machining envelope.
How Multi-Axis Coordination Improves Accuracy
Every additional setup introduces opportunities for positioning errors. Moving a part between machines can affect alignment and increase inspection requirements.
Keeping more operations within one setup helps reduce these risks. The machine maintains the workpiece position while different tools create related features.
This approach supports repeatable production when manufacturers combine suitable tooling, stable cutting conditions, accurate programming, and proper machine maintenance.
Managing Small-Diameter Components
Many Swiss-type applications involve small components that demand precise dimensional control. Small workpieces can deflect more easily during machining, especially when their length exceeds their diameter significantly.
The guide bushing provides support near the cutting zone. Appropriate tooling and cutting parameters then help control vibration, heat, and cutting forces.
The result can provide a more stable process for precision components with demanding dimensional requirements.
Tooling Flexibility For Complex Parts
A complex component may require more tools than a simple turned part. An 8-axis machine can provide additional tooling flexibility for combining different cutting processes.
Manufacturers should evaluate the available tool positions, live tooling capacity, holder compatibility, and clearance before selecting a machine.
The tooling arrangement should match the actual component design rather than relying solely on the machine’s axis count.
Reducing Secondary Machining
Secondary machining adds another stage to the production process. It may require additional workholding, handling, inspection, and machine time.
An 8-axis Swiss configuration can reduce secondary work when its tooling and spindle capabilities cover more of the required features.
This does not mean every part can receive complete machining in one cycle. The practical benefit depends on geometry, tolerances, material, and machine configuration.
Maintaining Consistent Production
Precision production requires more than achieving the correct dimensions on the first component. Manufacturers also need repeatability across an entire batch.
CNC programming helps maintain consistent tool movements and machining sequences. Stable workholding, suitable tooling, and controlled cutting parameters further support repeatable results.
JSWAY focuses on CNC machining solutions for manufacturers that require precision and efficient production of complex components. The right machine configuration can help maintain consistency without relying on excessive manual intervention.
Materials And Cutting Conditions
Different materials create different machining challenges. Stainless steel, aluminum, brass, titanium, and engineering plastics each require appropriate tooling and cutting strategies.
Manufacturers should consider material hardness, chip formation, heat generation, tool wear, and surface-finish requirements before establishing machining parameters.
An 8-axis machine provides flexibility, but proper process planning remains essential for achieving reliable results.
Programming Plays A Critical Role
Multi-axis equipment requires careful programming. The machining sequence should account for tool access, spindle coordination, workpiece support, clearance, and chip evacuation.
A well-developed program can distribute operations efficiently while avoiding unnecessary tool movements.
Simulation and verification also help identify potential collisions or inefficient movements before production begins.
When Should Manufacturers Consider An 8-Axis Swiss Machine?
An 8-axis configuration may suit manufacturers producing components that combine several precision operations within a relatively small workpiece.
It can prove particularly useful when a production process involves:
- Complex part geometries
- Tight dimensional requirements
- Multiple turned and milled features
- Small or slender components
- High production quantities
- Reduced setup requirements
- Front and rear machining
Manufacturers should compare these requirements with the actual machine specifications before making a purchasing decision.
How JSWAY Supports Precision Manufacturing
Choosing an 8-axis Swiss machine requires a complete review of the production process. Axis count matters, but tooling, spindle capabilities, guide bushing design, control functions, and automation also affect the final result.
JSWAY offers CNC machining solutions designed around precision production requirements. Manufacturers can evaluate the machine alongside their part drawings, materials, tolerances, cycle-time targets, and expected production volumes.
Final Thoughts
An 8-axis Swiss-type configuration handles complex precision parts by combining multiple controlled machining movements with stable workpiece support and flexible tooling.
The ability to perform turning, drilling, milling, threading, grooving, and other operations within fewer setups can simplify production and improve consistency. For manufacturers working with intricate small components, the right 8-axis machine can provide a practical combination of precision, flexibility, and production efficiency.
